Metal stamping dies are essential tools in the manufacturing industry, used to shape and form metal sheets into various products. As a trusted Metal Stamping Dies supplier, I understand the importance of using the right materials to ensure the quality, durability, and performance of these dies. In this blog post, I will discuss the commonly used materials for making metal stamping dies, their properties, and their applications.
Tool Steels
Tool steels are the most widely used materials for metal stamping dies due to their excellent combination of hardness, toughness, and wear resistance. They can withstand the high pressures and stresses involved in the stamping process without deforming or breaking. Here are some of the commonly used tool steels for metal stamping dies:
D2 Tool Steel
D2 tool steel is a high-carbon, high-chromium alloy steel known for its exceptional wear resistance and hardness. It can be heat-treated to achieve a hardness of up to 62 HRC, making it suitable for applications where high wear resistance is required, such as blanking and piercing dies. D2 tool steel also has good dimensional stability, which means it maintains its shape and size during the heat treatment process. However, it is relatively brittle and may crack under high-impact loads.
A2 Tool Steel
A2 tool steel is a medium-carbon, air-hardening alloy steel that offers a good balance of hardness, toughness, and wear resistance. It can be heat-treated to a hardness of 57-62 HRC and has better toughness than D2 tool steel, making it suitable for applications where impact resistance is important, such as forming and bending dies. A2 tool steel also has good machinability and can be easily shaped and finished.
O1 Tool Steel
O1 tool steel is a low-carbon, oil-hardening alloy steel that is known for its ease of heat treatment and good machinability. It can be heat-treated to a hardness of 60-65 HRC and has moderate wear resistance and toughness. O1 tool steel is commonly used for small-scale stamping dies and for applications where cost is a major consideration.
High-Speed Steels
High-speed steels (HSS) are a group of tool steels that contain high amounts of tungsten, molybdenum, chromium, and vanadium. They are known for their ability to maintain their hardness and cutting edge at high temperatures, making them suitable for high-speed machining and stamping operations. Here are some of the commonly used high-speed steels for metal stamping dies:
M2 High-Speed Steel
M2 high-speed steel is a widely used high-speed steel that offers a good combination of hardness, toughness, and wear resistance. It can be heat-treated to a hardness of 63-66 HRC and has excellent red hardness, which means it retains its hardness at high temperatures. M2 high-speed steel is commonly used for cutting and shearing dies, as well as for applications where high-speed stamping is required.
M42 High-Speed Steel
M42 high-speed steel is a high-cobalt high-speed steel that offers superior wear resistance and cutting performance compared to M2 high-speed steel. It can be heat-treated to a hardness of 67-69 HRC and has excellent red hardness and toughness. M42 high-speed steel is commonly used for applications where high wear resistance and cutting performance are required, such as fine blanking dies and precision stamping dies.
Carbides
Carbides are a group of hard, wear-resistant materials that are commonly used for metal stamping dies. They are made by combining carbon with a metal, such as tungsten, titanium, or tantalum, to form a hard, brittle compound. Carbides offer excellent wear resistance, hardness, and chemical stability, making them suitable for applications where high wear resistance is required, such as blanking and piercing dies. Here are some of the commonly used carbides for metal stamping dies:
Tungsten Carbide
Tungsten carbide is the most widely used carbide for metal stamping dies due to its excellent wear resistance and hardness. It can be made in various grades and compositions, depending on the specific application requirements. Tungsten carbide is commonly used for blanking and piercing dies, as well as for applications where high precision and long tool life are required.
Titanium Carbide
Titanium carbide is a hard, wear-resistant carbide that offers good chemical stability and high-temperature resistance. It is commonly used in combination with other carbides, such as tungsten carbide, to improve the wear resistance and toughness of the die material. Titanium carbide is also used for applications where high-speed stamping is required, as it can maintain its hardness and cutting edge at high temperatures.
Other Materials
In addition to tool steels, high-speed steels, and carbides, there are other materials that are sometimes used for metal stamping dies, depending on the specific application requirements. Here are some of these materials:
Aluminum
Aluminum is a lightweight, corrosion-resistant metal that is sometimes used for making prototype stamping dies or for applications where low-cost and quick turnaround times are required. Aluminum dies are easy to machine and can be produced quickly, but they have limited durability and wear resistance compared to tool steels and carbides.
Copper
Copper is a soft, ductile metal that is sometimes used for making stamping dies for non-ferrous metals, such as aluminum and brass. Copper dies offer good thermal conductivity and can help to dissipate heat during the stamping process, which can improve the quality of the stamped parts. However, copper dies have limited wear resistance and are not suitable for high-volume stamping applications.
Conclusion

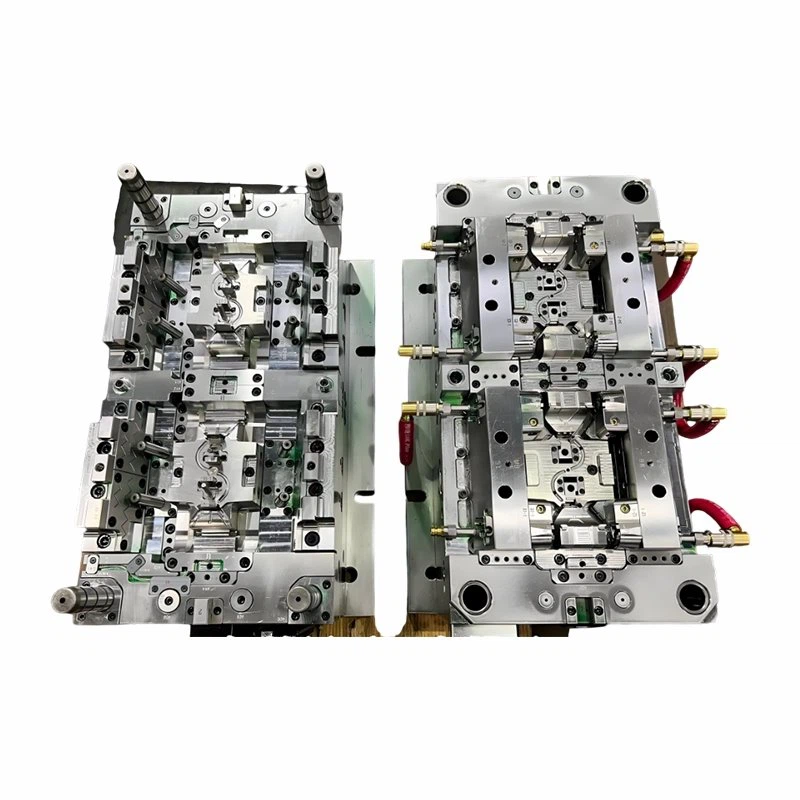

In conclusion, the choice of material for making metal stamping dies depends on a variety of factors, including the specific application requirements, the type of metal being stamped, the production volume, and the cost. Tool steels, high-speed steels, and carbides are the most commonly used materials for metal stamping dies due to their excellent combination of hardness, toughness, and wear resistance. However, other materials, such as aluminum and copper, may also be used in certain applications. As a Metal Stamping Dies supplier, I have the expertise and experience to help you choose the right material for your specific application requirements. If you are interested in Injection Molding Metal Parts, Metal Stamping Dies, or Automotive Parts Fixtures, please feel free to contact me for more information and to discuss your procurement needs.
References
- ASM Handbook, Volume 1: Properties and Selection: Irons, Steels, and High-Performance Alloys. ASM International, 1990.
- Tool and Manufacturing Engineers Handbook, Volume 4: Metal Cutting and Finishing. Society of Manufacturing Engineers, 1984.
- Metals Handbook Desk Edition, 2nd Edition. ASM International, 1998.
